Semester 4, 2024Mavallipura, Yelahanka, Bengaluru

A home from the landfill

A 25 sqm home for a couple who work at the Mavallipura landfill, built from what the landfill throws away.

A 25 square metre off-grid home for a young couple in their thirties who work at the Mavallipura landfill, about 15 km out of the city. It had to be cheap, and as much of it as possible had to come from what the landfill throws away.

013 pieces

Before this

The semester started small: turn an object into a dwelling (mine became a tent room for Coorg), then a house on a 3 by 3 metre grid.

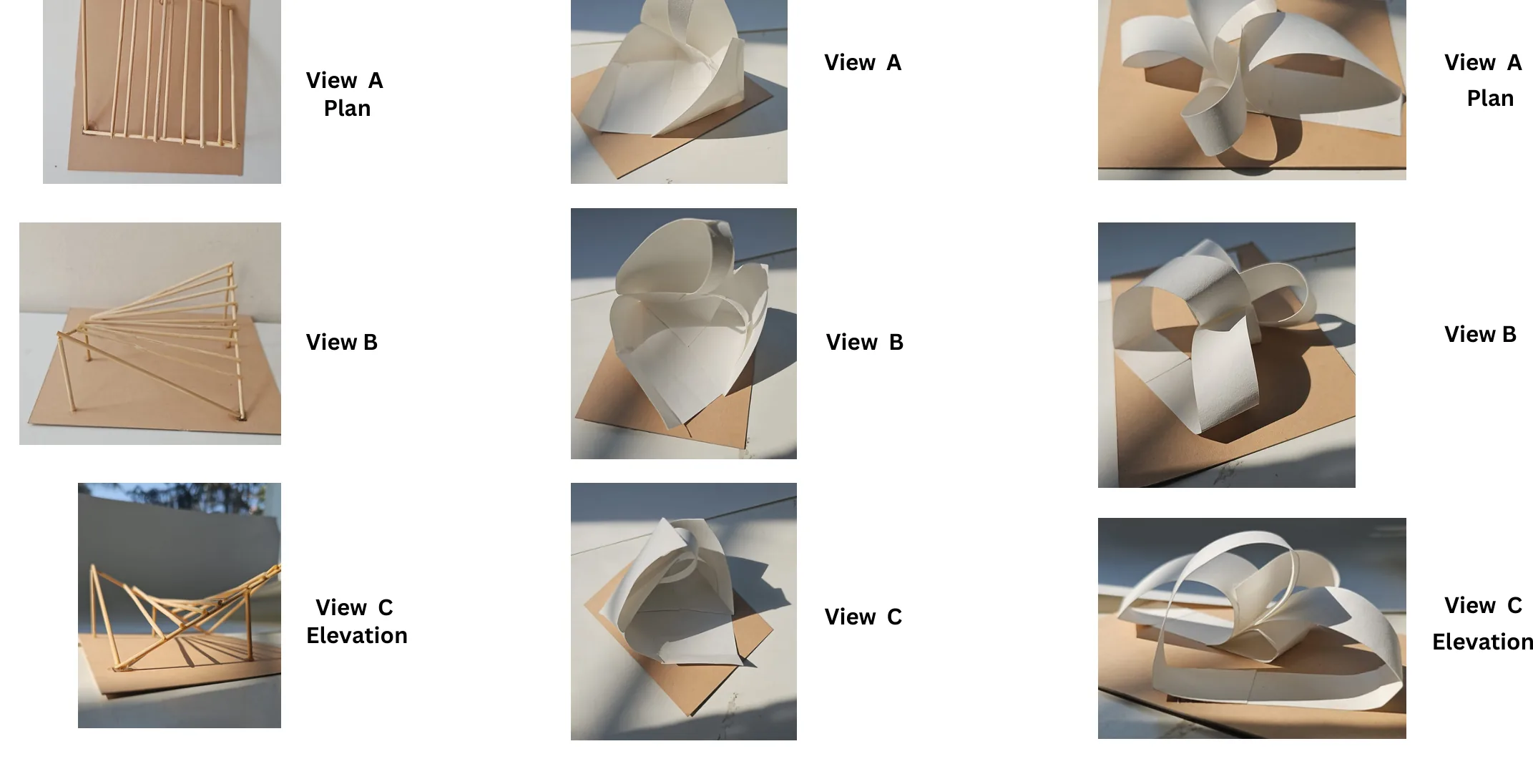

Before the landfill home: CA-1 'Dwelling in an Object'. Three abstract card/stick models, each photographed from three views (plan, side, elevation). — Before the landfill home: CA-1 'Dwelling in an Object'. Three abstract card/stick models.

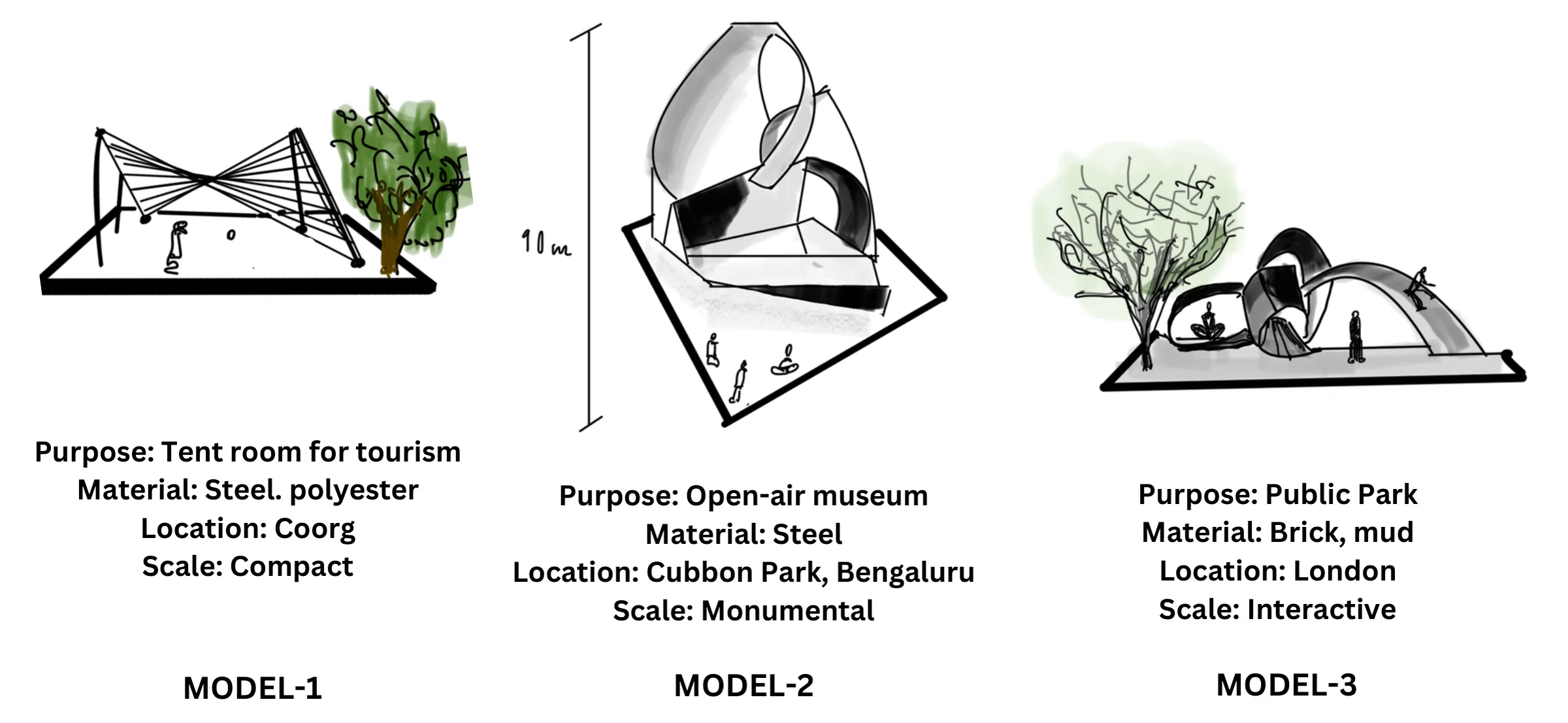

CA-1 stage 2: the three models redrawn as places - a cable-and-fabric tent room for tourists in Coorg, a steel open-air museum for Cubbon Park, and a brick-and-mud public park pavilion for London - with purpose, material, location and scale noted under each. — CA-1 stage 2.

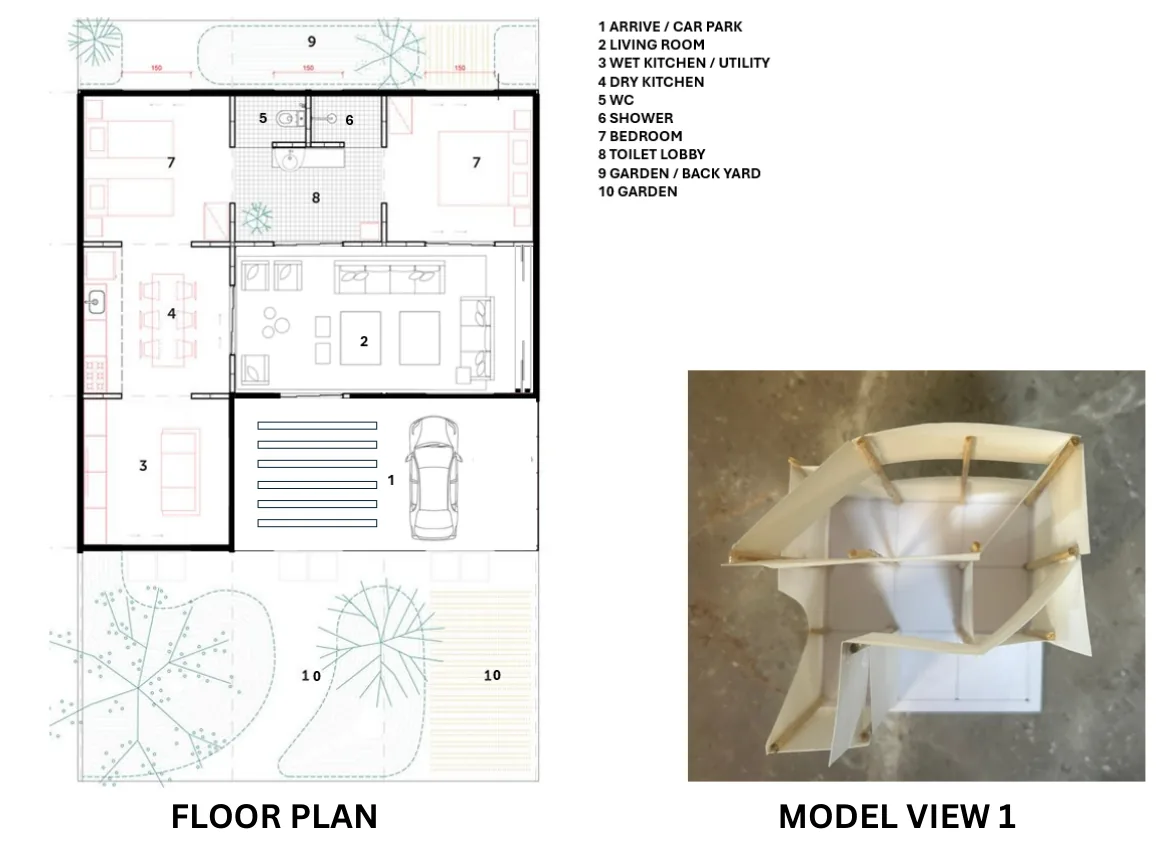

CA-2 'Dwelling in a Structure': floor plan of a house on a 3 m x 3 m grid at 1:50 (numbered rooms, car park, garden) beside a photo of the white card model. — CA-2 'Dwelling in a Structure'.

021 piece

The site

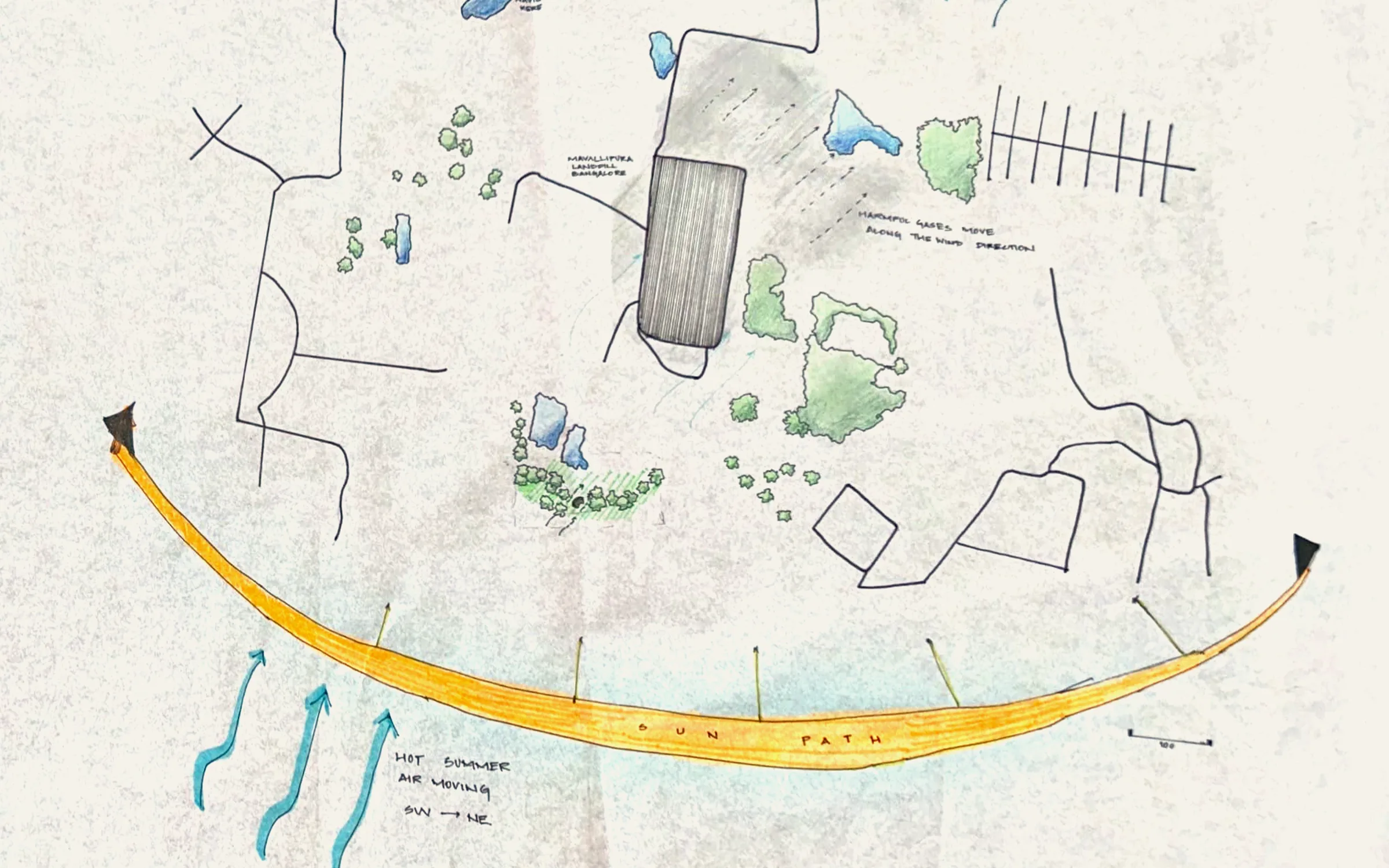

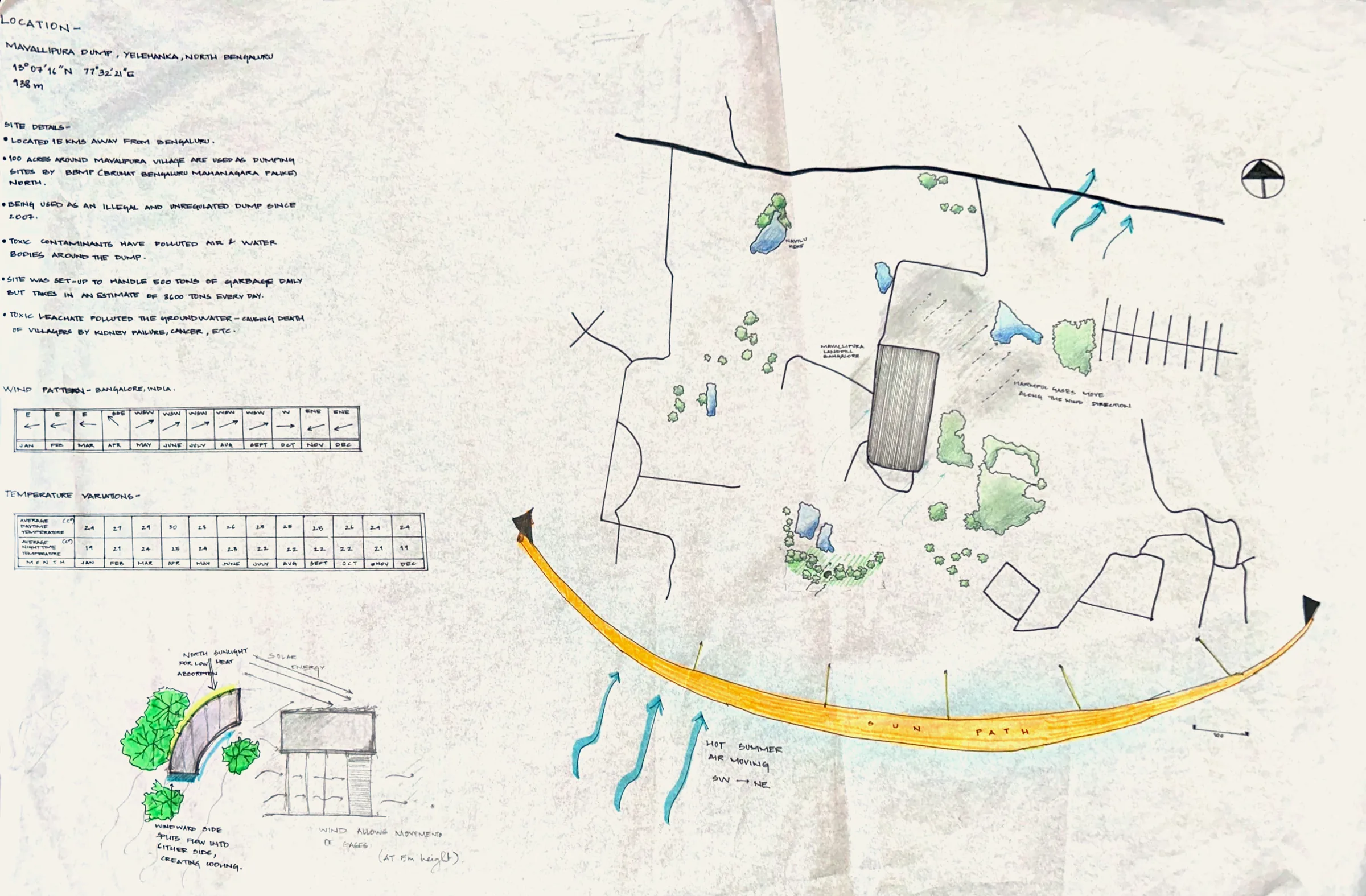

Hand-drawn site analysis on butter paper: Mavallipura landfill in north Bengaluru drawn as a black hatched block among lakes and tree clusters, an orange sun-path arc, blue arrows of hot SW summer wind, hand-lettered site facts, wind and temperature tables, and a coloured sketch of the curved home sheltered by trees. — Hand-drawn site analysis on butter paper.

033 pieces

The drawings

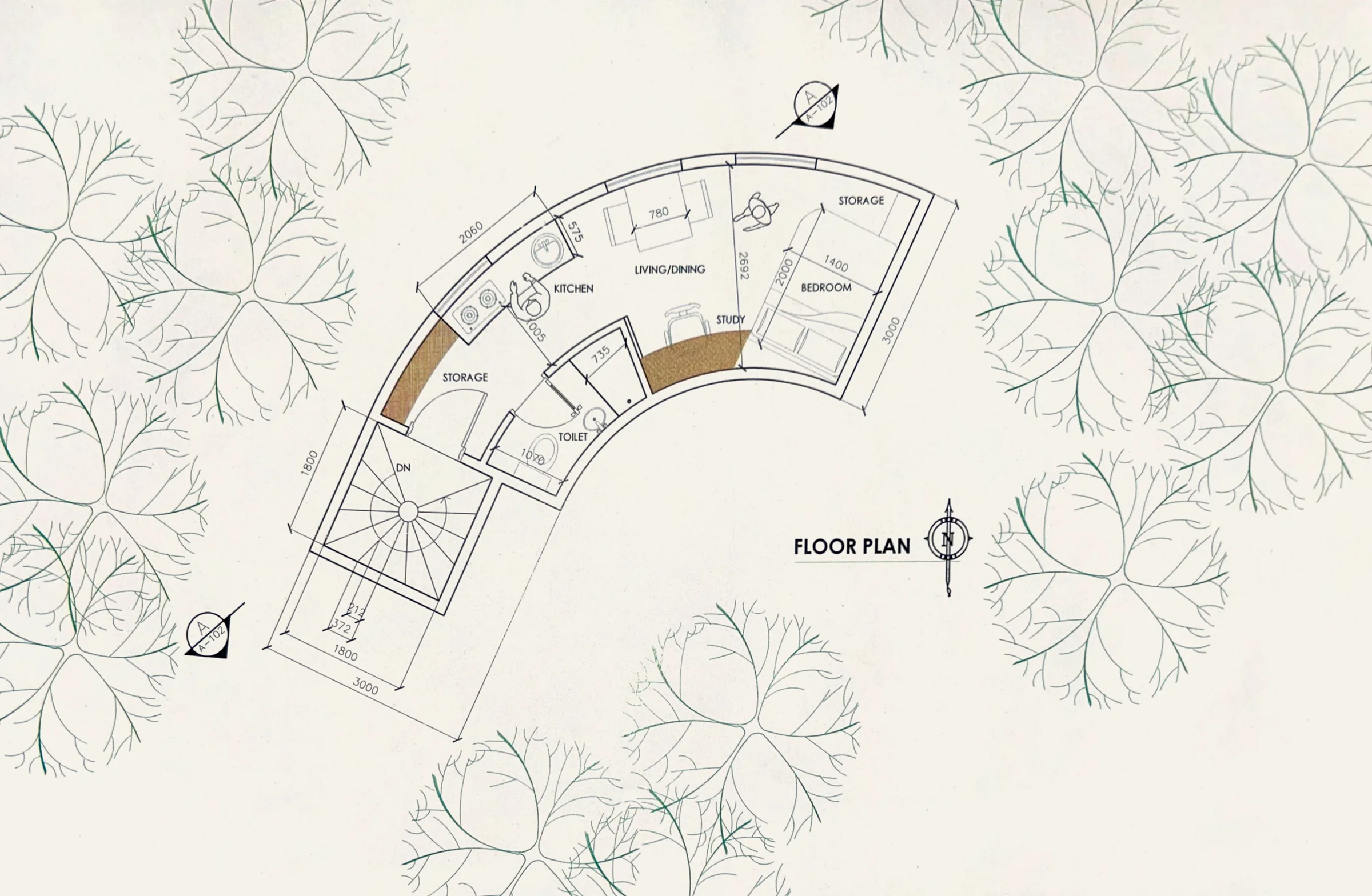

Floor plan at 1:50: the 25 sqm home as a curved bar - spiral stair, storage, kitchen, living/dining, study, toilet and bedroom - set among hand-style tree symbols. — Floor plan at 1:50.

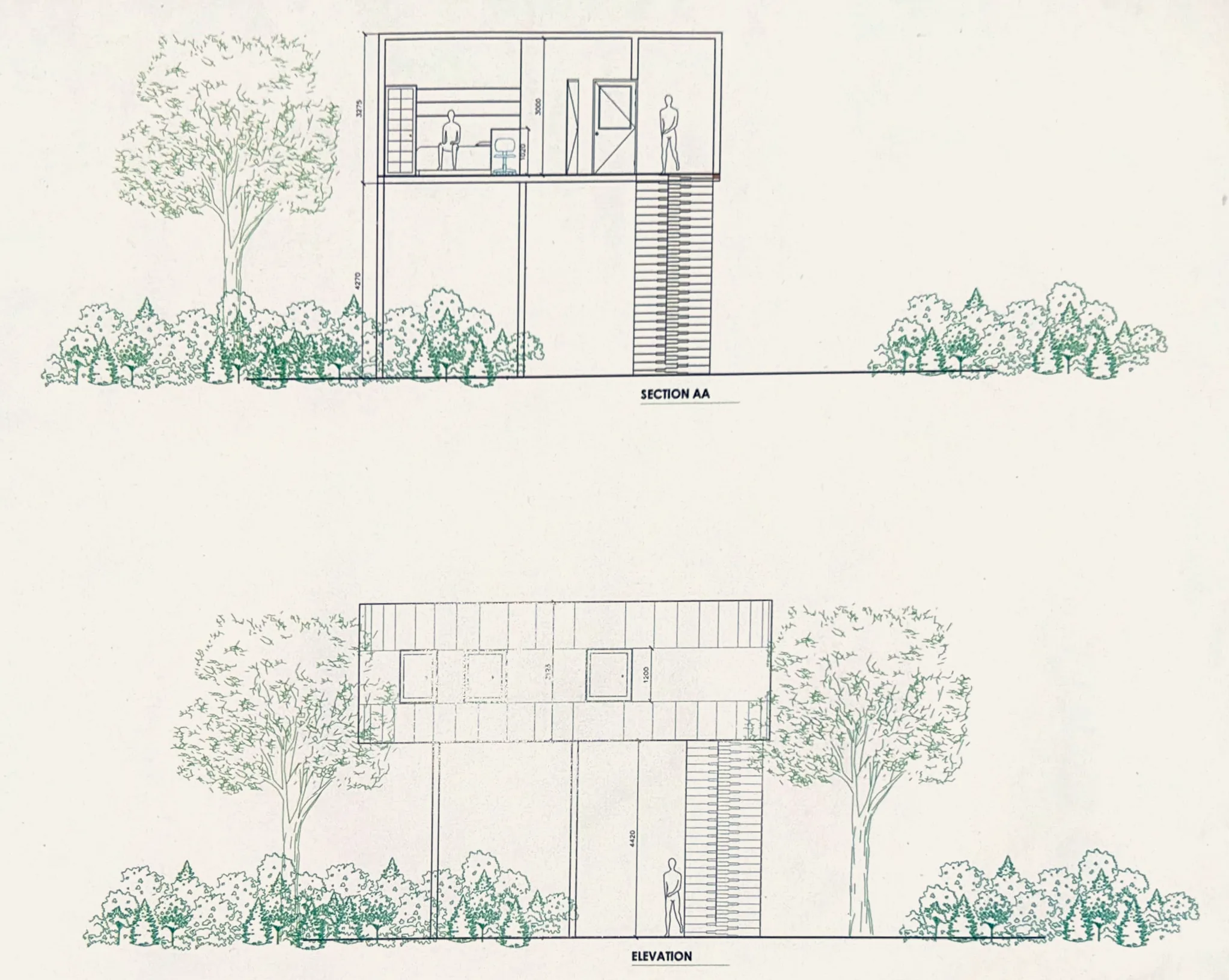

Section AA and elevation at 1:100: the home raised on recycled-steel stilts with an external stair, people for scale, trees and shrubs drawn in green. — Section AA and elevation at 1:100.

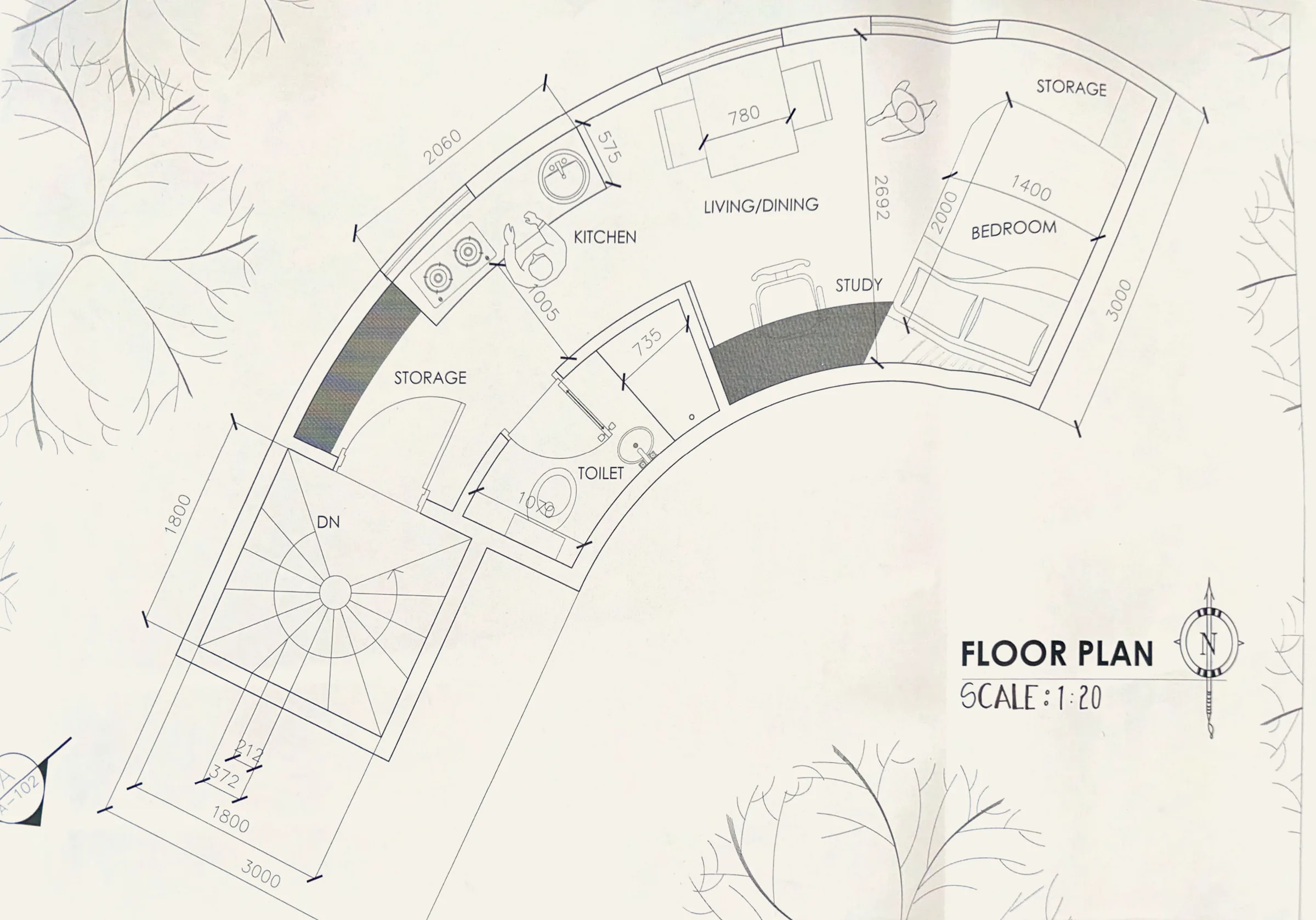

The same plan at 1:20 with dimensions: a 3 m wide curve holding kitchen, living/dining, study, bedroom, toilet, storage and a spiral stair down to the ground. — The same plan at 1:20 with dimensions: a 3 m wide curve holding kitchen.
