Semester 5, 2024On the bund of Ulsoor Lake, Kensington Road, Bengaluru

Halasuru Bridged

A civic project in Halasuru. A lot of trace paper and a lot of iterations.

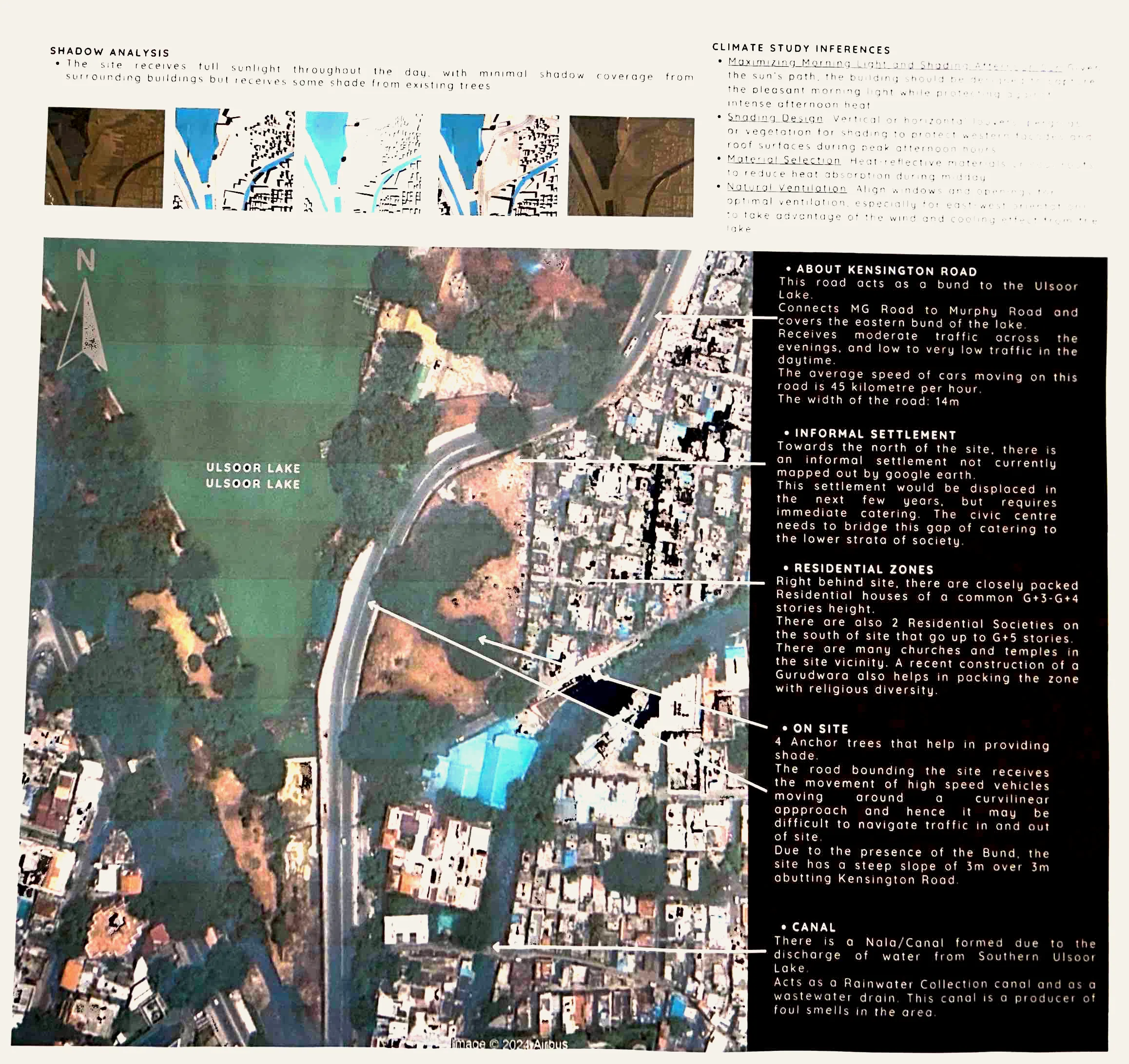

A civic centre on the bund of Ulsoor Lake, with a library, a health and wellbeing centre, a cafe and workshops. The site had an informal settlement on one side, dense housing behind, four big trees and a canal at the corner. The site analysis was the part I was proudest of.

The design went through a lot of trace paper, from blocks around courts to two round courts joined by curving paths.

014 pieces

Walls, with my group

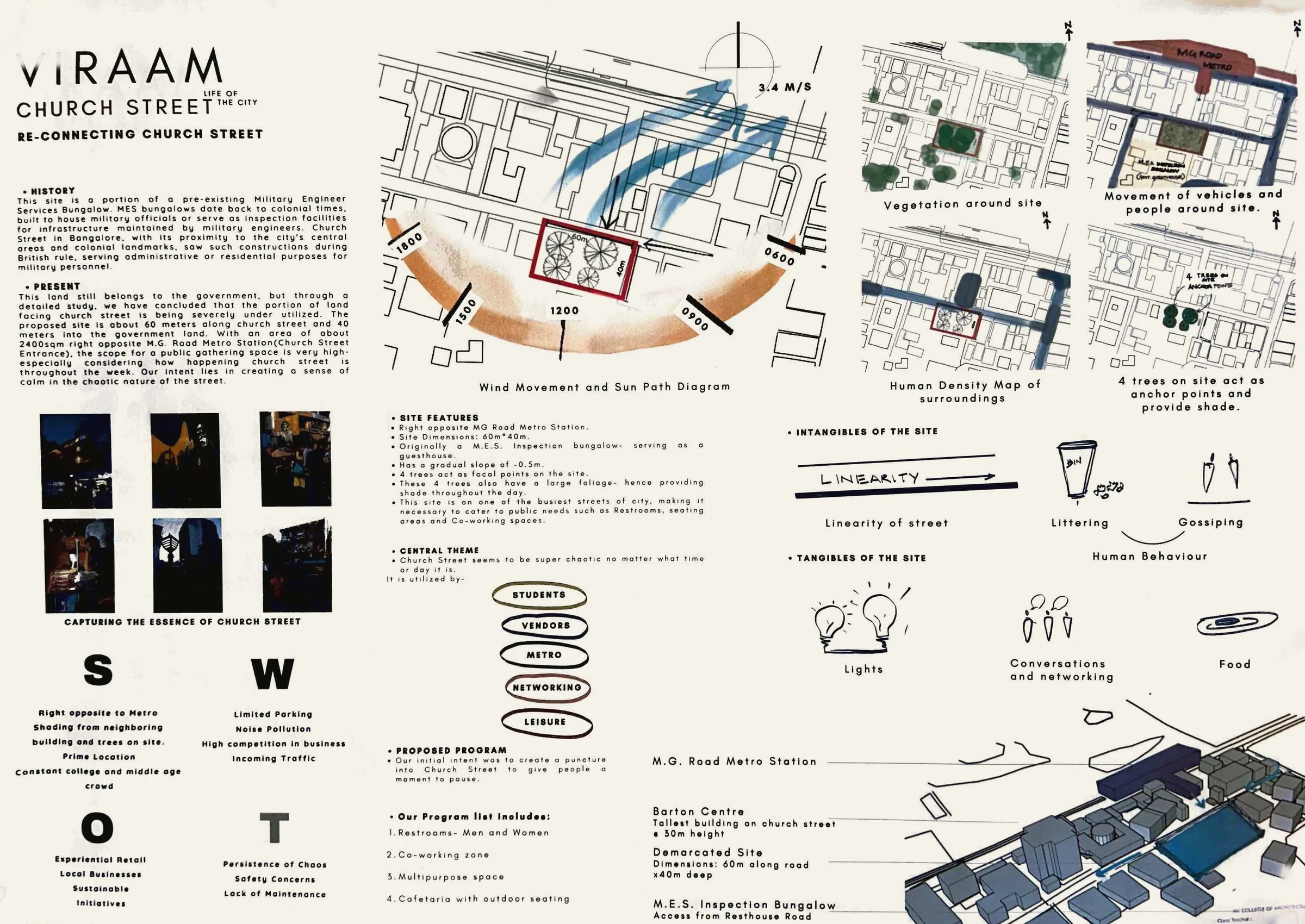

Before the design, four of us (Dev Vohra, Soumya R. Patro, S. Lashwanth Arjun and me) studied how walls behave in public spaces, and did a streetscape study of Church Street.

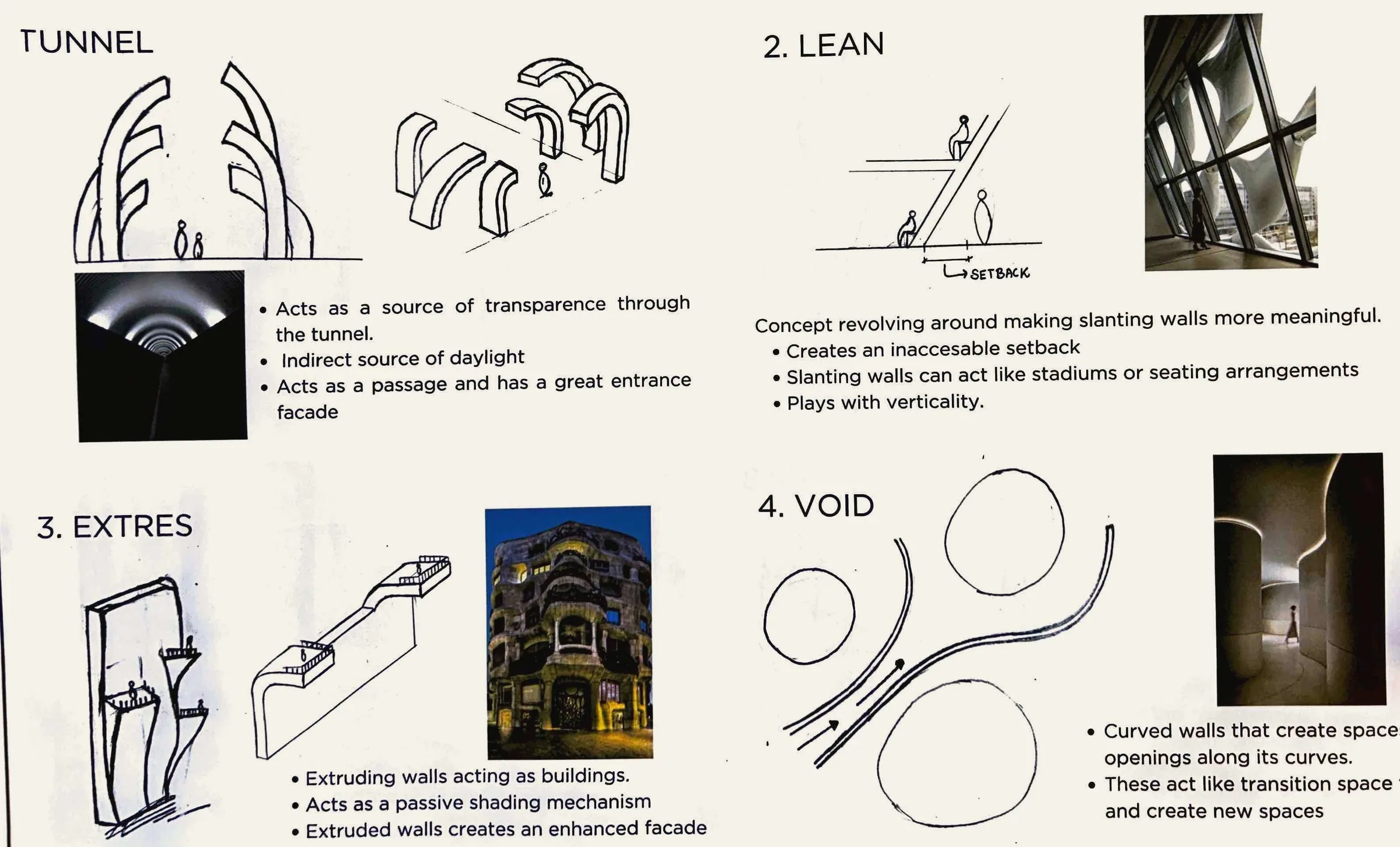

Group study. WALLS typology sheet 1: ink sketches of the tunnel, lean, extrude and void wall behaviours, each with a reference photo and notes on what the wall does. — Group study. WALLS typology sheet 1: ink sketches of the tunnel.

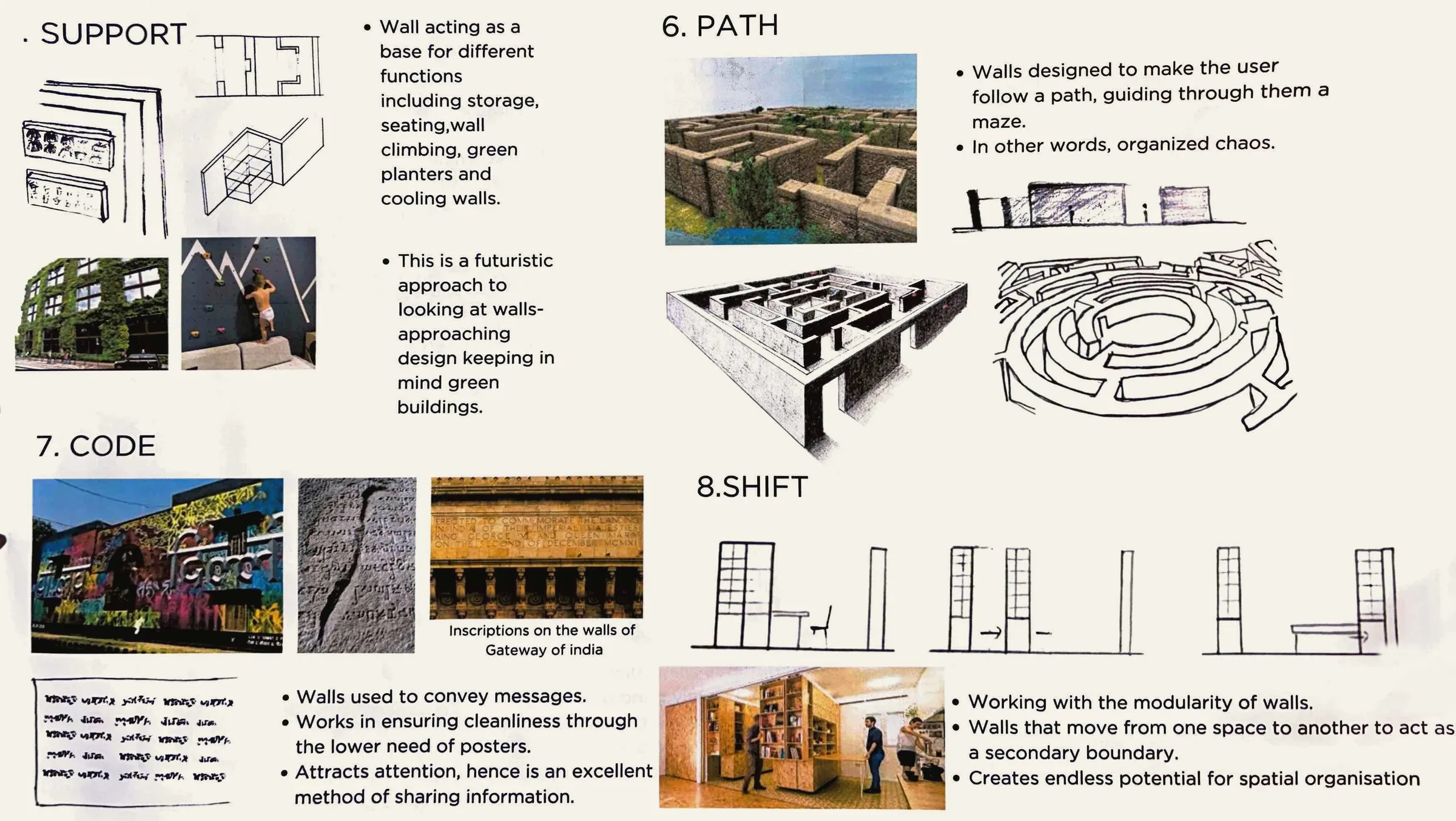

Group study. WALLS typology sheet 2: support, path, code and shift - walls as storage and seating, maze-like paths, walls that carry messages, and modular walls that move between spaces. — Group study. WALLS typology sheet 2: support.

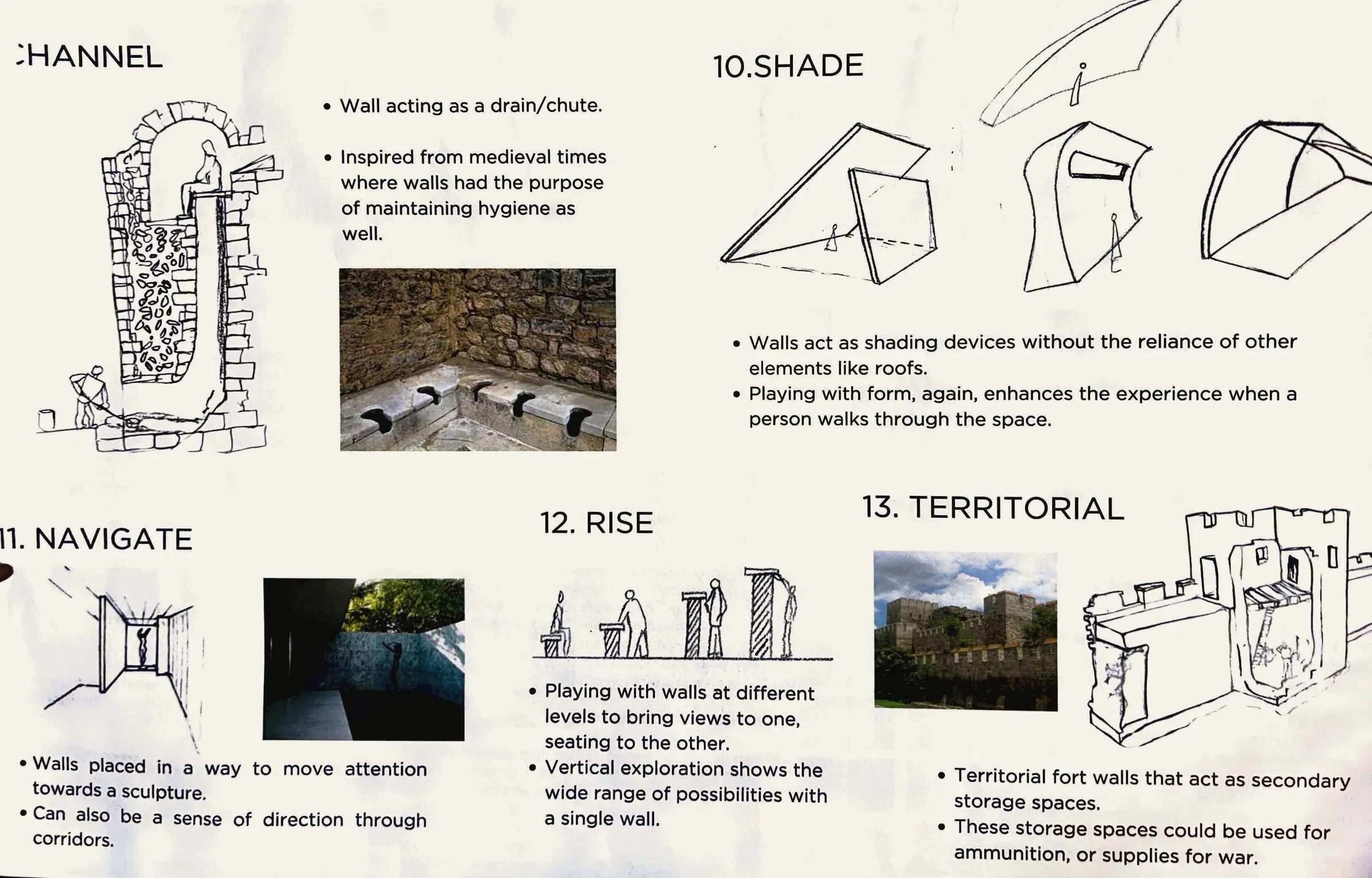

Group study. WALLS typology sheet 3: channel, shade, navigate, rise and territorial - walls as drains, as roofs and shading, as guides for movement, as stepped seating and as fort-like storage. — Group study. WALLS typology sheet 3: channel.

021 piece

The site

035 pieces

A lot of trace paper

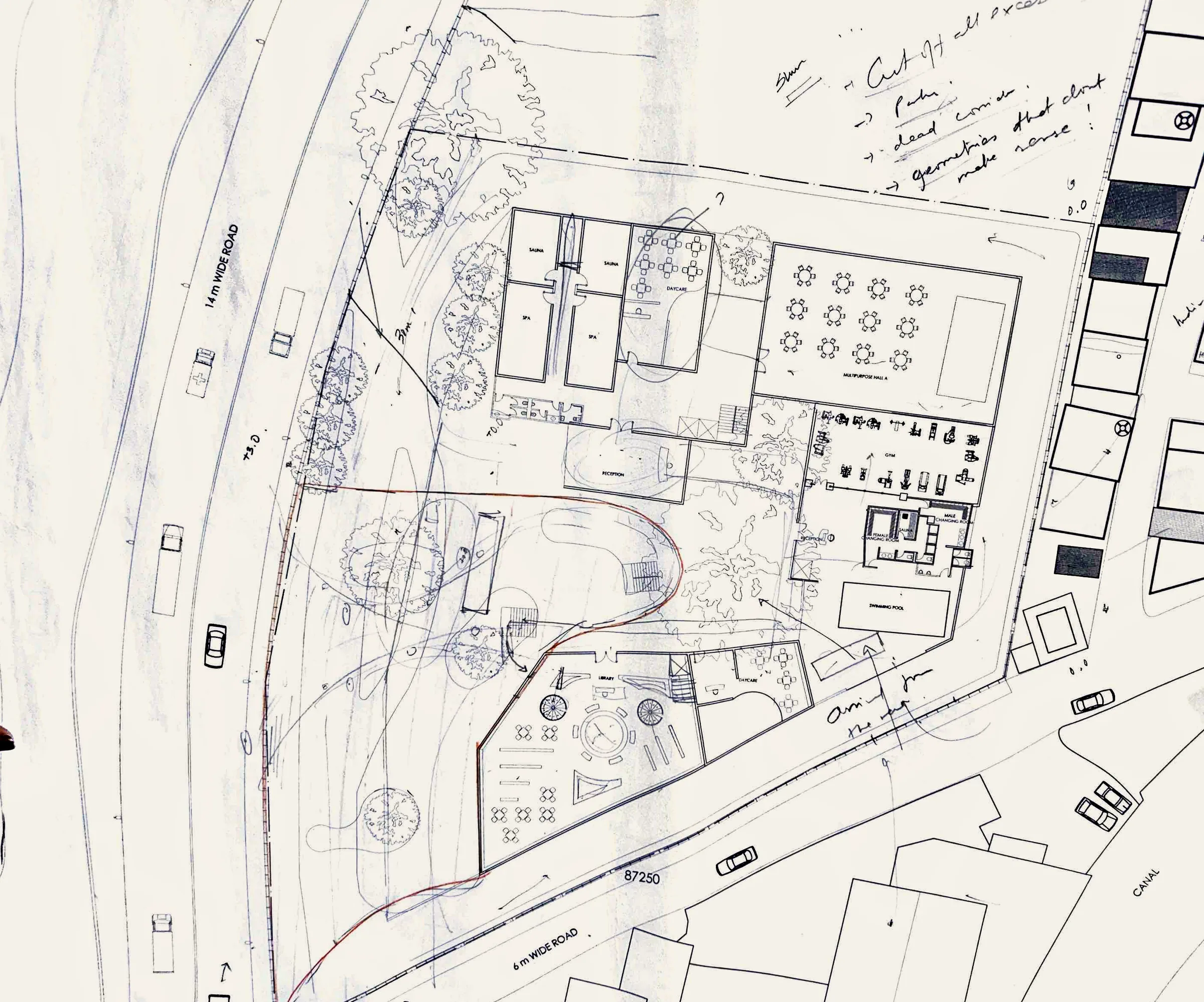

Early iteration in pencil over the printed site plan: dining halls, courts and rooms laid out as blocks, with a red line tracing a curved route through the site and handwritten notes. — Early iteration in pencil over the printed site plan: dining halls.

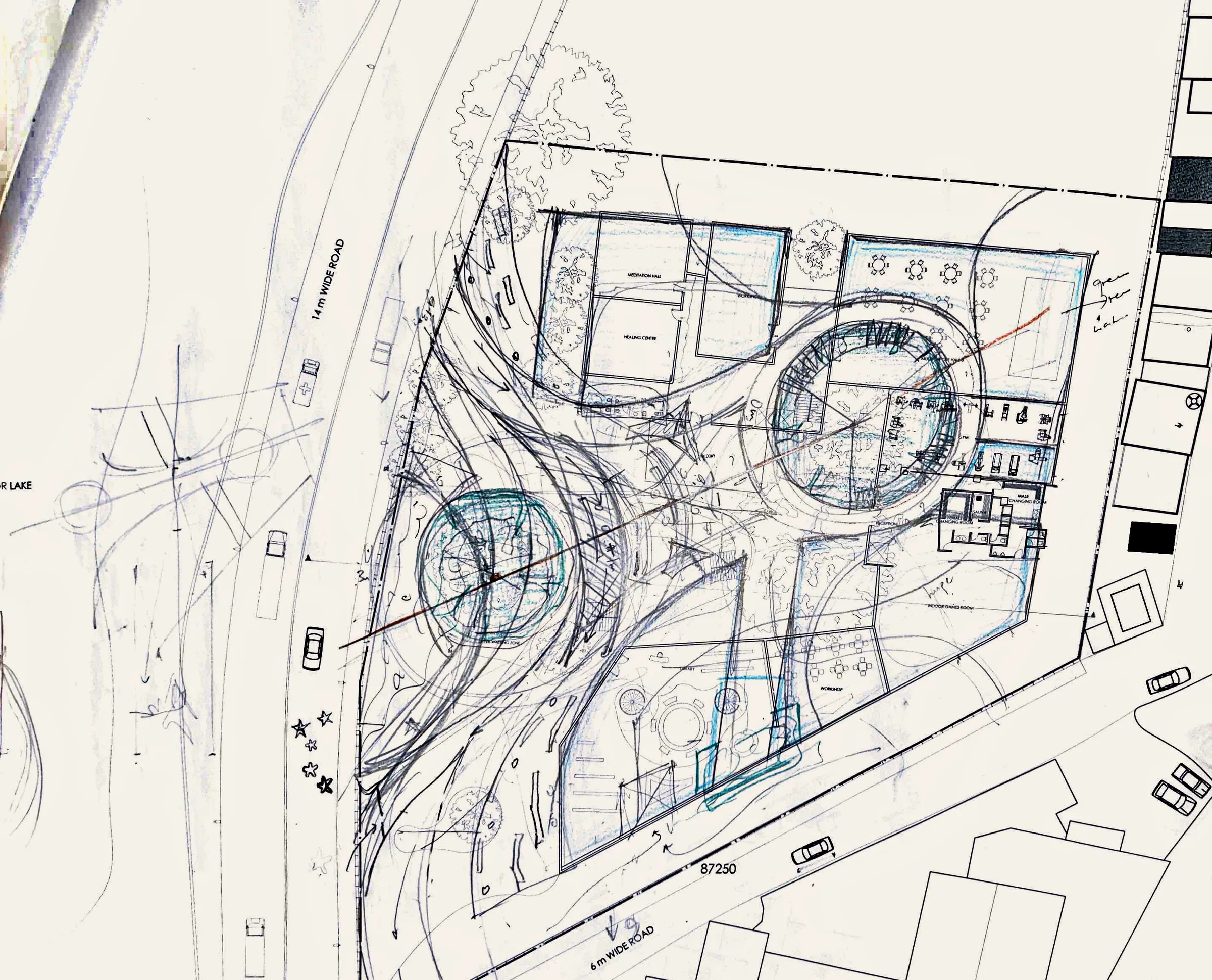

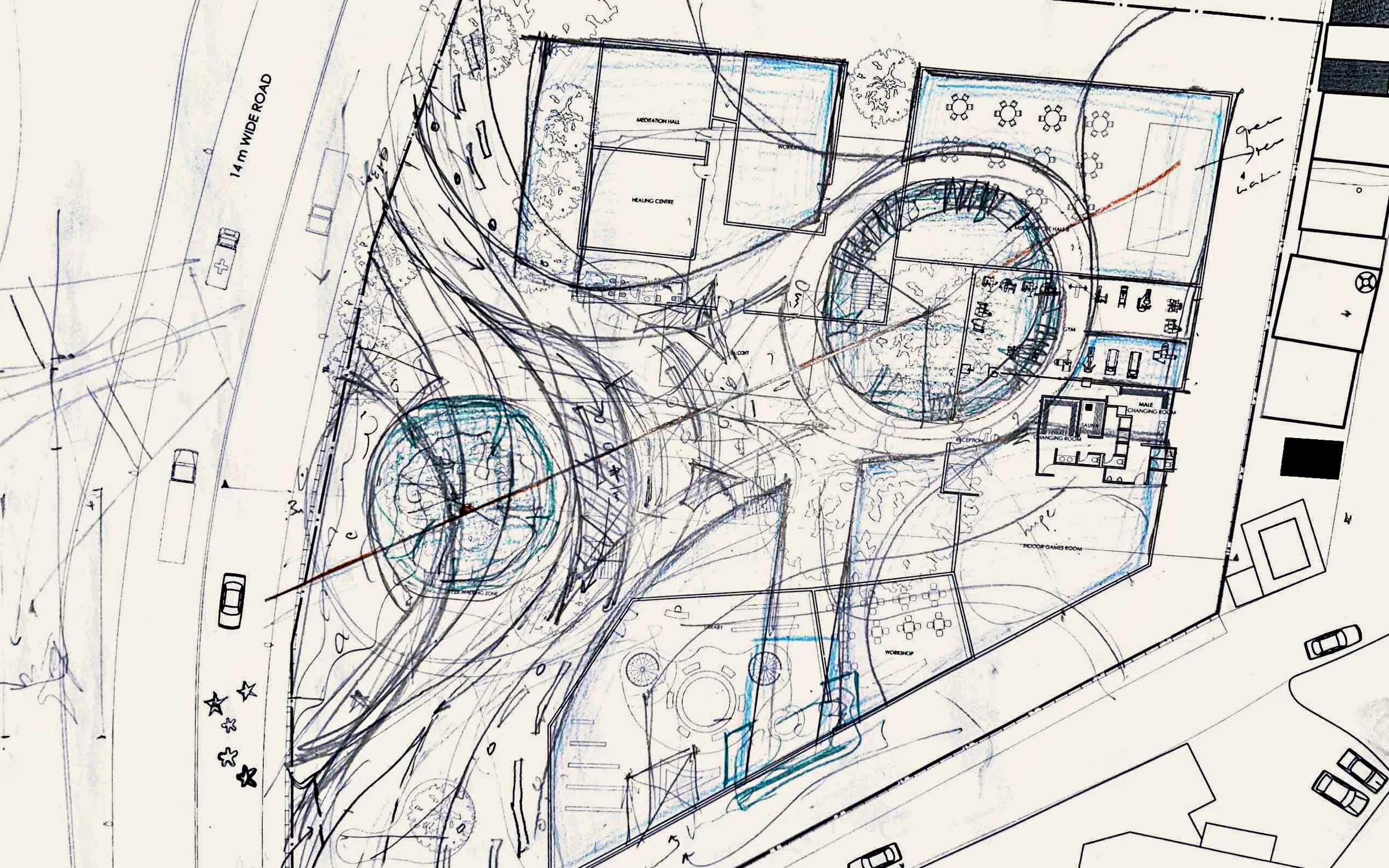

Iteration in pencil and blue pencil over the site plan: two circular courts linked by sweeping curved paths that run from the road into the site, with blocks around them. — Iteration in pencil and blue pencil over the site plan.

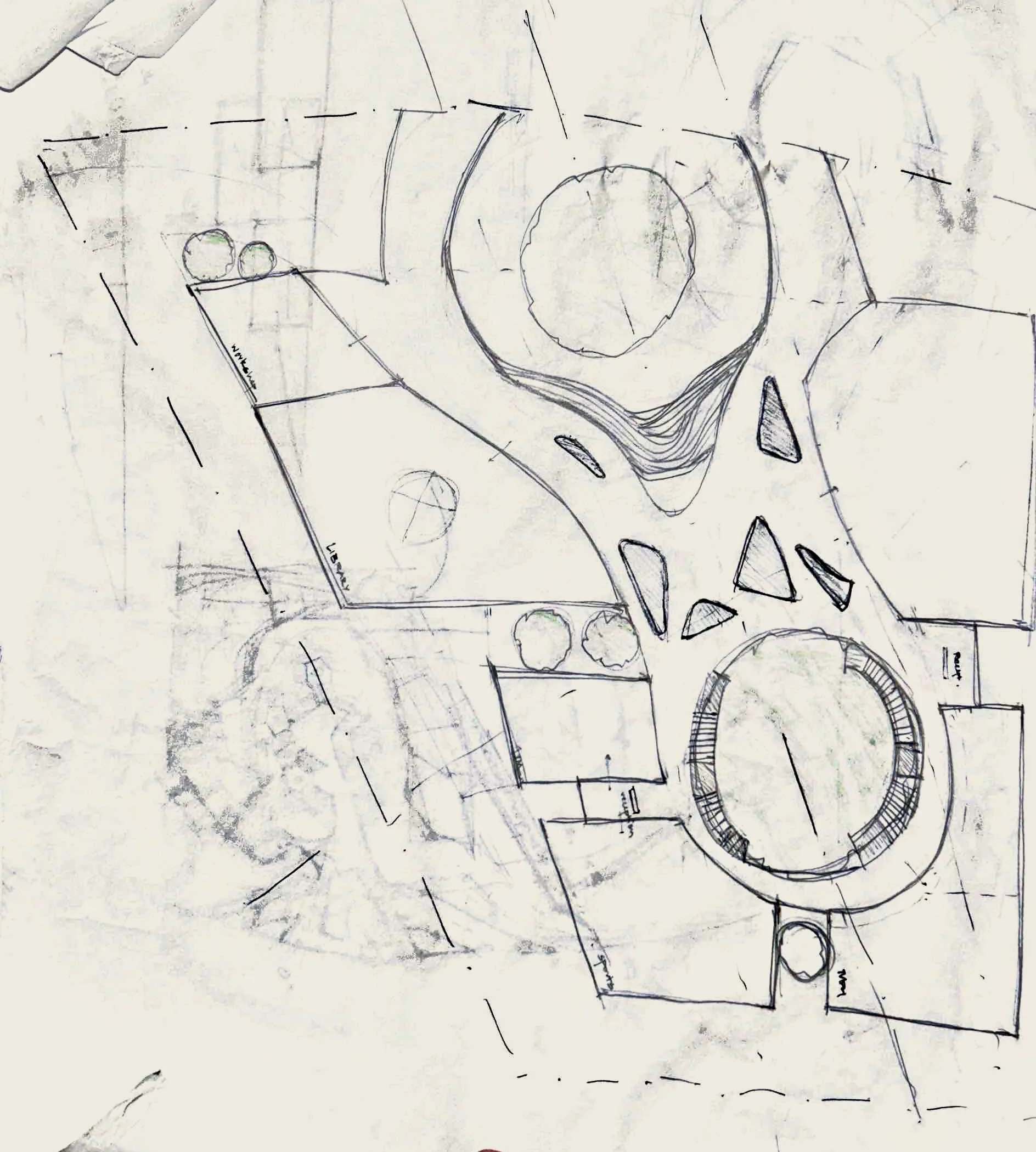

Butter-paper iteration: two round courts, one shaded green, pinched together by a curving spine and scattered triangular openings, drawn over the faint site plan. — Butter-paper iteration: two round courts.

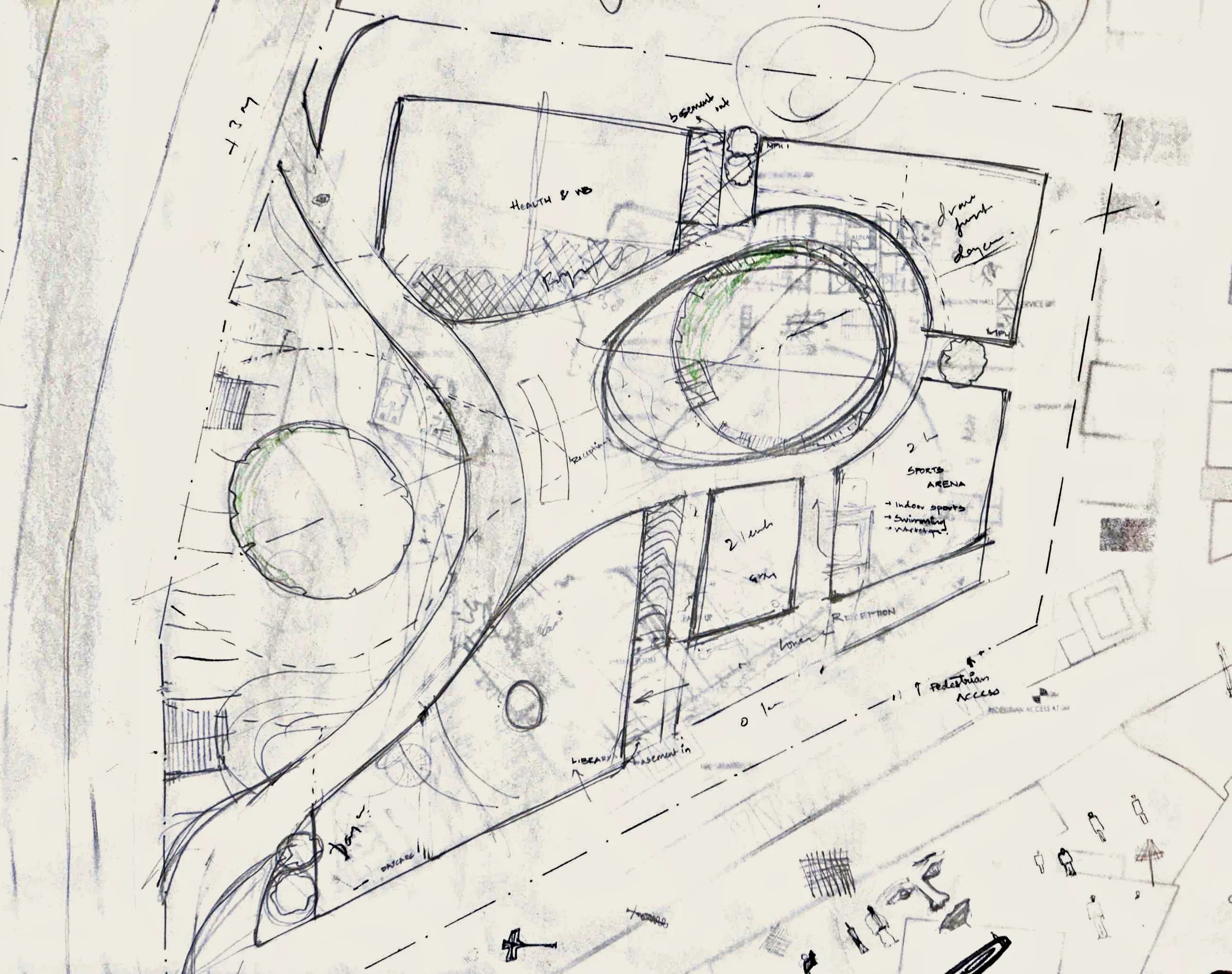

Butter-paper iteration: an oval court and a round court joined by a curving path that bridges from the road, with blocks labelled for programme and furniture sketched along the edges. — Butter-paper iteration.

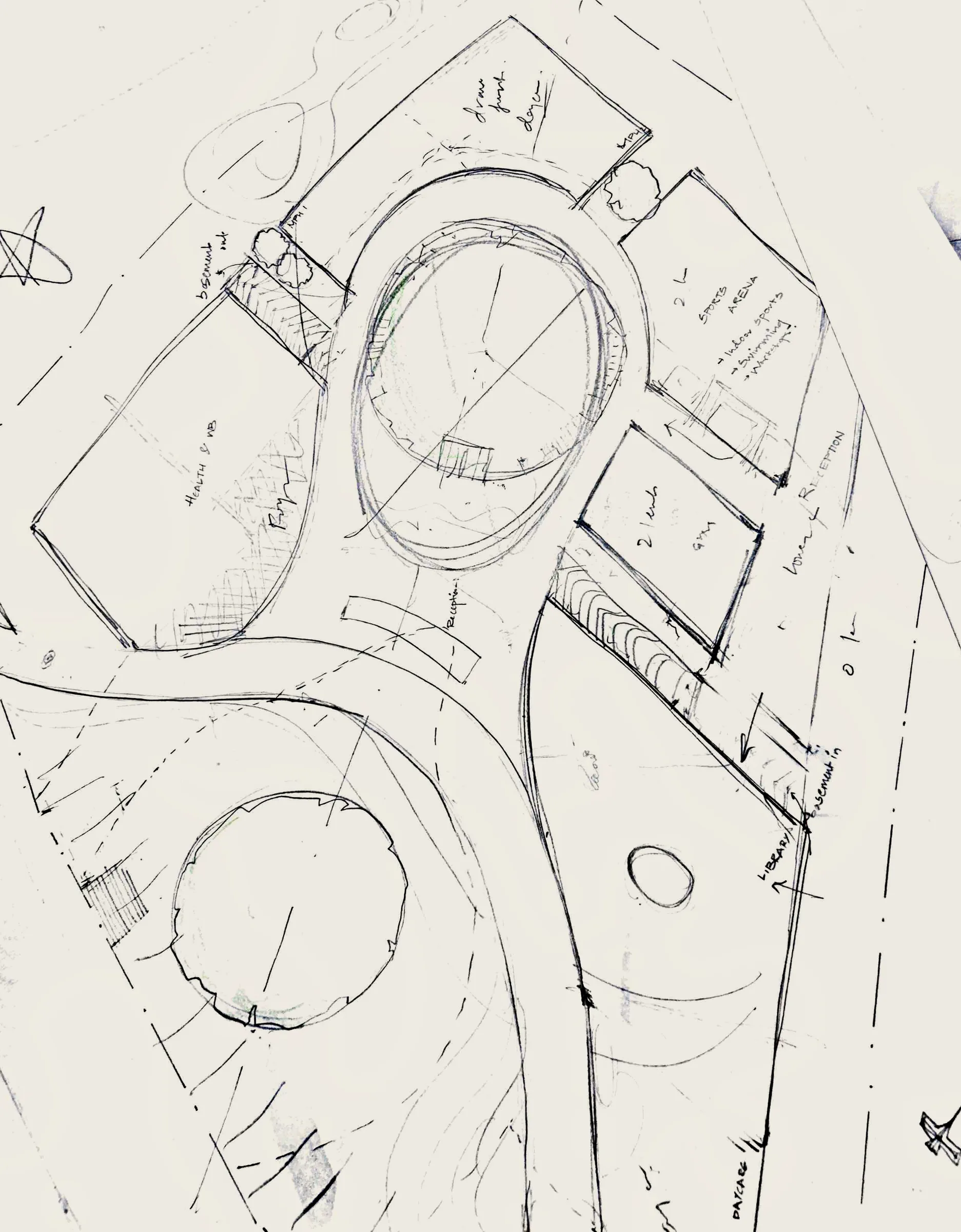

Loose pencil sketch of the same oval-and-circle scheme at a larger scale, with labelled blocks (library, reception, arena) and the path curving through. — Loose pencil sketch of the same oval-and-circle scheme at a larger scale.

044 pieces

Where it ended up

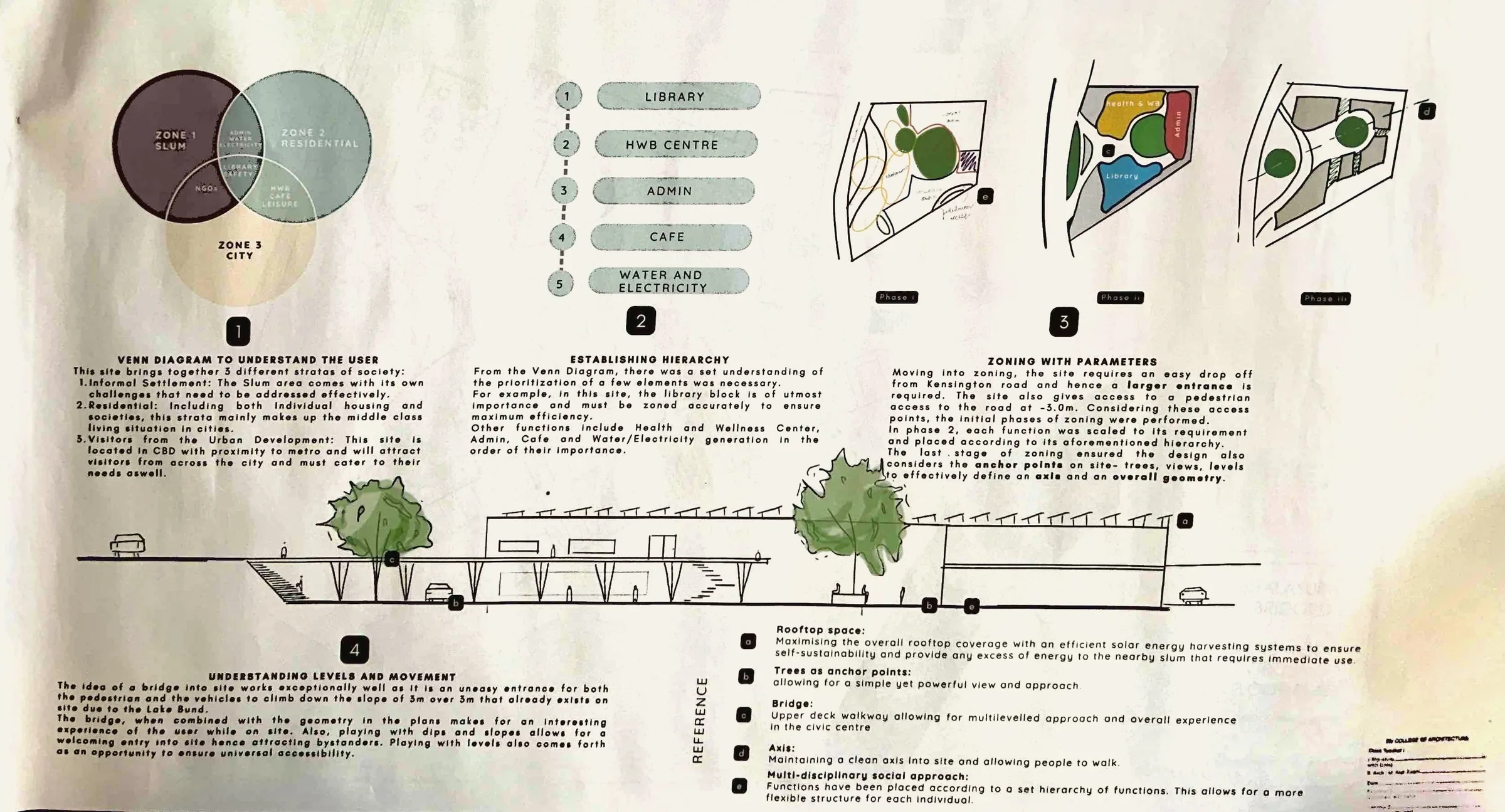

'Design Approach' sheet: a Venn diagram of the users, the programme listed as library, health-and-wellbeing centre, admin, cafe and water/electricity, three zoning diagrams in colour, and a long section showing how the levels step down to meet people walking in. — 'Design Approach' sheet: a Venn diagram of the users.

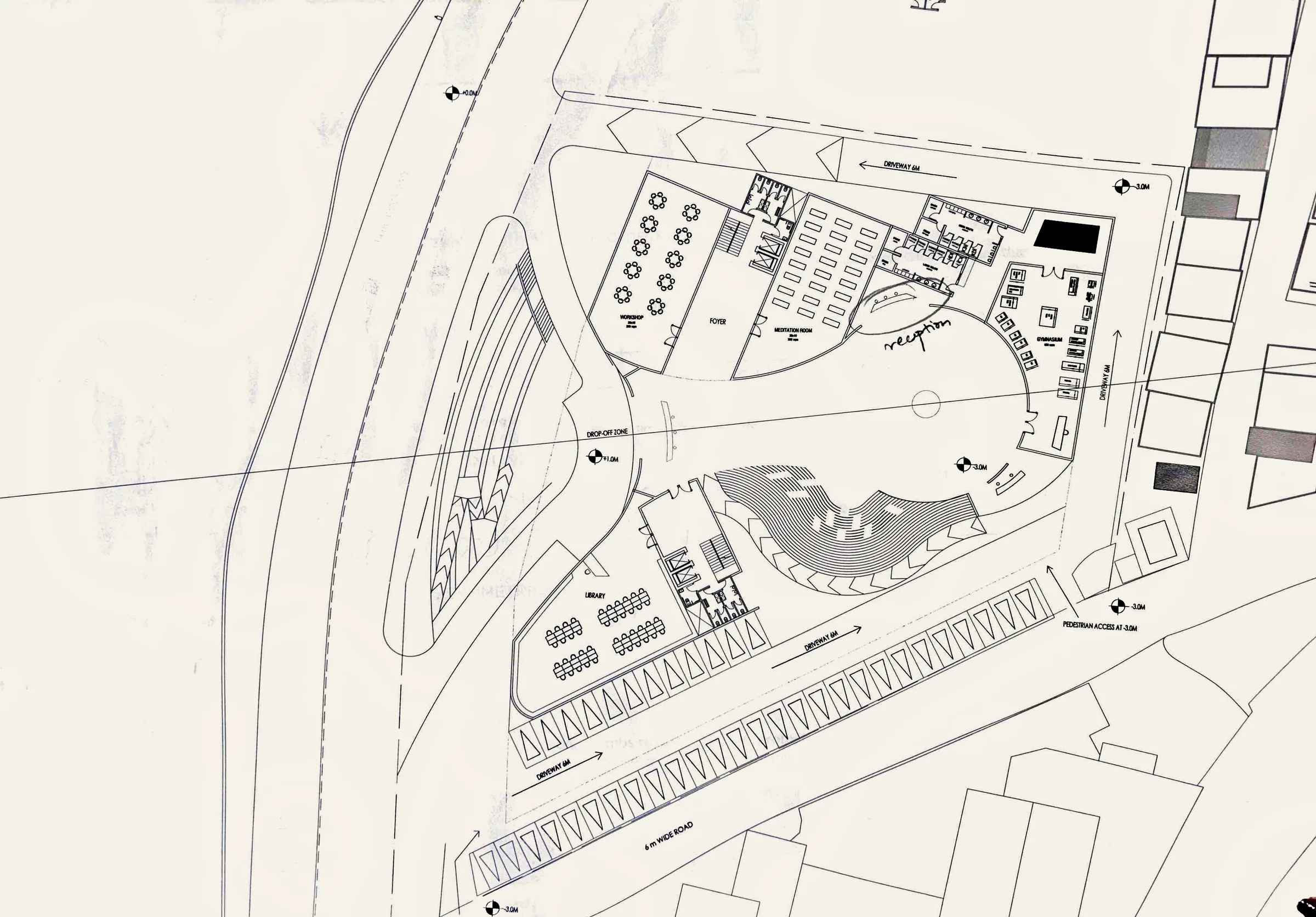

Developed ground plan: a central open court with a stepped amphitheatre, workshop and dining halls along one side, and a long zig-zag edge of parking along the road. — Developed ground plan: a central open court with a stepped amphitheatre.

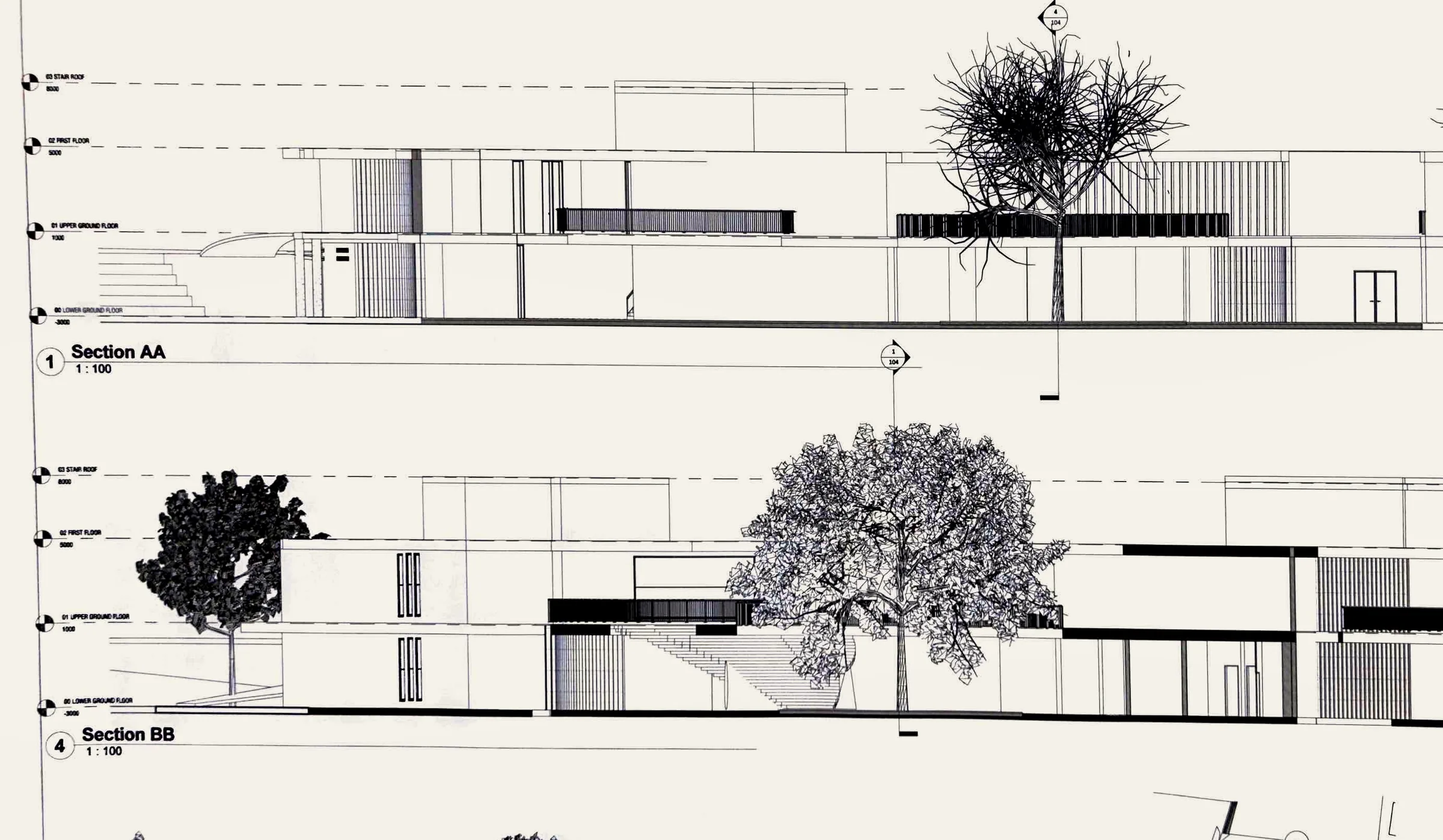

Sections AA and BB (Revit, with pen-style tree silhouettes): long low blocks and terraces stepping across the site, with the courtyard tree rising through the middle. — Sections AA and BB (Revit, with pen-style tree silhouettes).

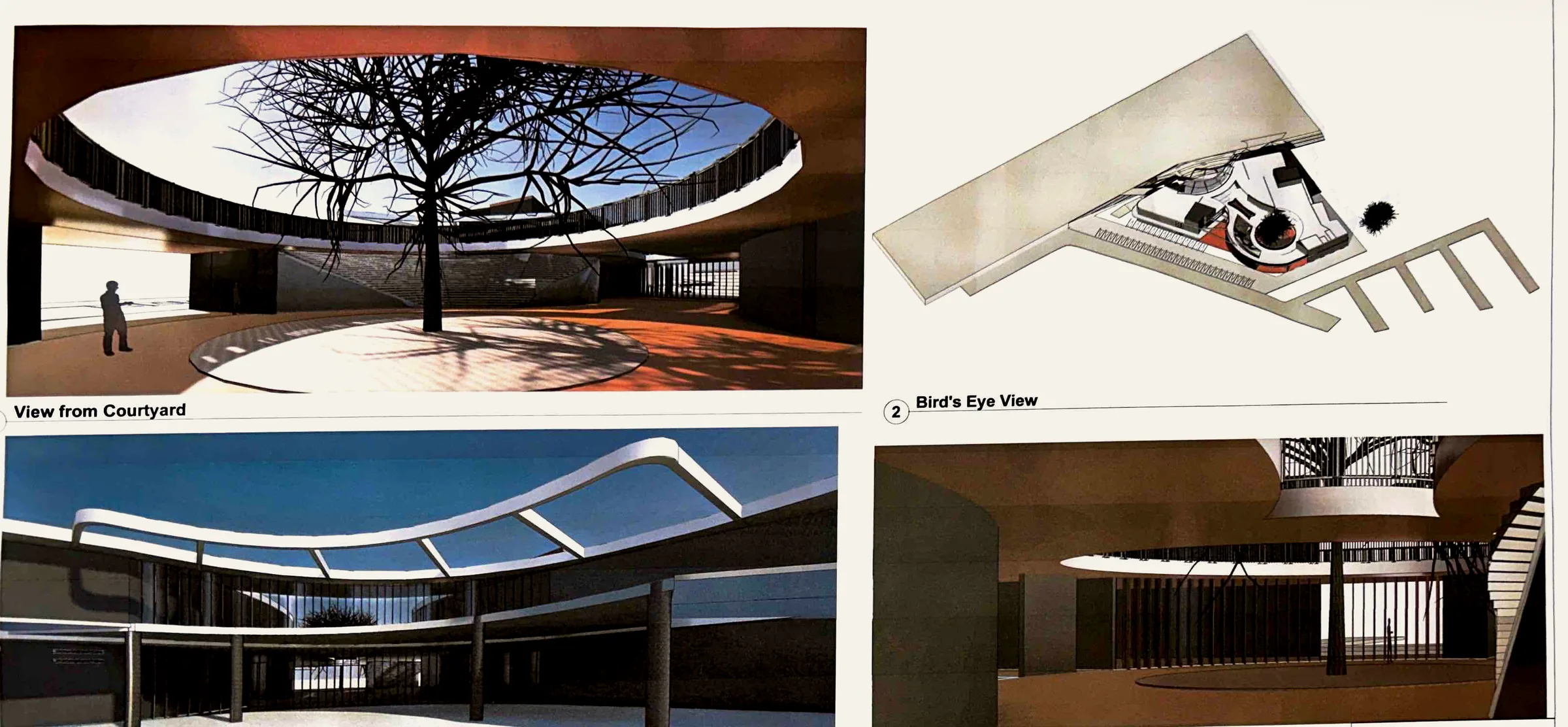

Renders from the views sheet: the courtyard looking up past the tree through a round opening, a bird's-eye view, the pedestrian entrance from Kensington Road under curved white walkways, and an interior view. — Renders from the views sheet.
